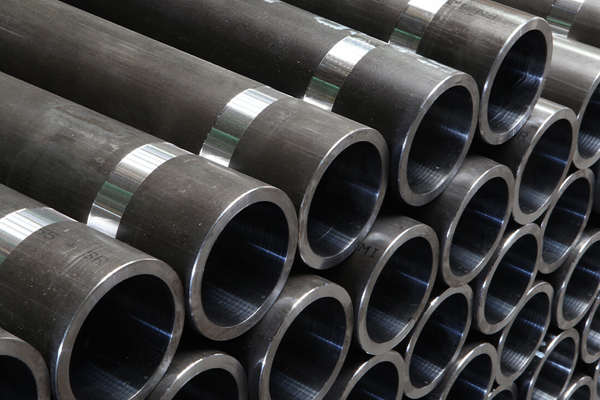

ASTM A106 Grade B Seamless Pipe is suitable for high temperature services. The specification is for seamless carbon steel pipes that can support flanging, bending and other forming operations. A M Industries is a leading manufacturer and supplier of the ASTM A106 Grade B Seamless Pipe in different dimensions and types. The material has carbon, manganese, phosphorus, sulfur, silicon, chro mium, copper, molybdenum, nickel and vanadium in the composition. There are different schedules, wall thicknesses and outer diameters of the pipes.

ASTM A106 Grade B Pipes Manufacturers, ASTM A106 Grade B Pipes Suppliers, ASTM A106 Grade B Pipes Stockists, ASTM A106 Grade B Pipes Exporters

The ASTM A106 Gr B Sch 40 comes with good corrosion resistance and strength properties. The minimum tensile strength of the pipes is 48ksi and the minimum yield strength is 30ksi. These pipes can be welded with most conventional methods. Since the temperature capacity is high, no preheating or post weld heat treatment is required for these pipes for welding. The ASTM A106 Grade B Pipe ranges in diameter from ¼ inches through 30 inches in diameter with schedules ranging from sch20 through XXH. The wall thickness of the A106 Pipe can range from 2 inches to 4 inches in different diameters of the pipes.

ASTM A106 Grade B Pipes Manufacturers in India, ASTM A106 Grade B Pipes Suppliers in India, ASTM A106 Grade B Pipes Stockists in India, ASTM A106 Grade B Pipes Exporters in India

Due to the high temperature capacities of the pipes, the Seamless Pipe ASTM A106 Grade B is used in oil and gas refineries, chemical and petrochemical plants, boilers and power plants. Also the strength of the pipes makes them available in construction, ship building and in transmission lines. Please feel free to contact us for more information on the A106 Carbon Steel Pipe.

ASTM A106 Grade B Pipes Manufacturers in Mumbai, ASTM A106 Grade B Pipes Suppliers in Mumbai, ASTM A106 Grade B Pipes Stockists in Mumbai, ASTM A106 Grade B Pipes Exporters in Mumbai

ASTM A106 Grade B Steel Pipes & Tubes Specifications

Size Range

1/2” NB to 36” NB

Thickness

SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules

Length

Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths

End Protection

Plastic Caps

Outside Coating

Black Painting, Anti-Corrosion Oil, Galvanised Finish, Finish as per customer Requirements

End Connections for Line Pipes

Plain, Bevel, Screwed, Threaded

Type

Seamless / ERW / Welded / Fabricated / CDW

Form

Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes

End

Plain End, Beveled End, Threaded

Packing

Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests

Inspection, Test Reports

Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports, India Boiler Regulations (IBR) Test Certificate

Specials

Sizes and Specifications other than above can be manufactured on request

Chemical Composition (%)
Grade	C (Max)	Mn	Si (Min)	Cu (Max)	Ni (Max)	Cr (Max)	Mo (Max)	V (Max)	P (Max)	S (Max)
A	0.25	0.27~0.93	0.1	0.4	0.4	0.4	0.15	0.08	0.035	0.035
B	0.3	0.29~1.06	0.1	0.4	0.4	0.4	0.15	0.08	0.035	0.035
C	0.35	0.29~1.06	0.1	0.4	0.4	0.4	0.15	0.08	0.035	0.035

Mechanical Properties:
Grade	Tensile Strength (Mpa), Min.	Yield Strength (Mpa), Min.
A	330	205
B	415	240
C	485	275
